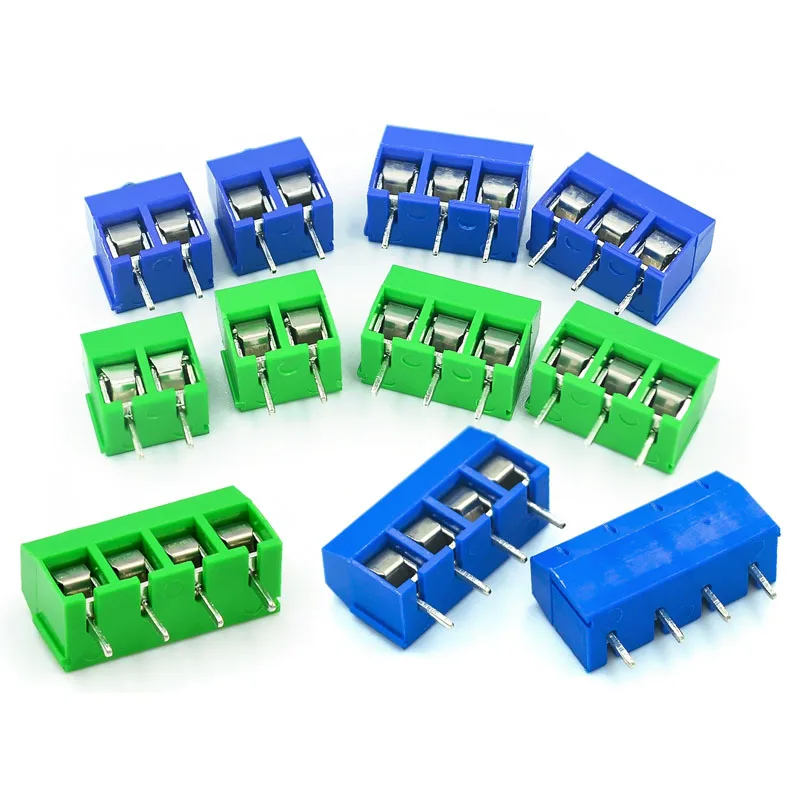

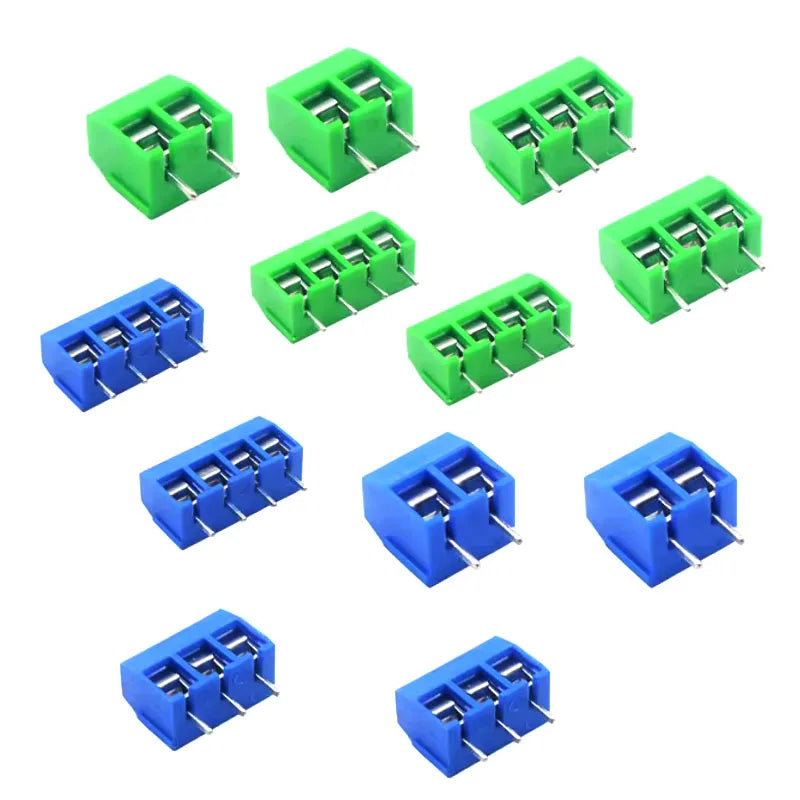

10Pcs KF301 KF301-2P 3P 4P 5mm Screw Wire Terminal Block Pitch 5.0mm Straight Pin Spliceable Plug-in PCB Cable Connector

10Pcs KF301 KF301-2P 3P 4P 5mm Screw Wire Terminal Block Pitch 5.0mm Straight Pin Spliceable Plug-in PCB Cable Connector

10Pcs 3P Green
$0.96
Passer aux informations sur le produit
10Pcs KF301 KF301-2P 3P 4P 5mm Screw Wire Terminal Block Pitch 5.0mm Straight Pin Spliceable Plug-in PCB Cable Connector
  • 10Pcs KF301 KF301-2P 3P 4P 5mm Screw Wire Terminal Block Pitch 5.0mm Straight Pin Spliceable Plug-in PCB Cable Connector
  • 10Pcs KF301 KF301-2P 3P 4P 5mm Screw Wire Terminal Block Pitch 5.0mm Straight Pin Spliceable Plug-in PCB Cable Connector
  • 10Pcs KF301 KF301-2P 3P 4P 5mm Screw Wire Terminal Block Pitch 5.0mm Straight Pin Spliceable Plug-in PCB Cable Connector
  • 10Pcs KF301 KF301-2P 3P 4P 5mm Screw Wire Terminal Block Pitch 5.0mm Straight Pin Spliceable Plug-in PCB Cable Connector
  • 10Pcs KF301 KF301-2P 3P 4P 5mm Screw Wire Terminal Block Pitch 5.0mm Straight Pin Spliceable Plug-in PCB Cable Connector
  • 10Pcs KF301 KF301-2P 3P 4P 5mm Screw Wire Terminal Block Pitch 5.0mm Straight Pin Spliceable Plug-in PCB Cable Connector
10Pcs KF301 KF301-2P 3P 4P 5mm Screw Wire Terminal Block Pitch 5.0mm Straight Pin Spliceable Plug-in PCB Cable Connector

10Pcs KF301 KF301-2P 3P 4P 5mm Screw Wire Terminal Block Pitch 5.0mm Straight Pin Spliceable Plug-in PCB Cable Connector

$0.96
Color

Description:

10Pcs KF301 KF301-2P 3P 4P 5mm Screw Wire Terminal Block Pitch 5.0mm Straight Pin Spliceable Plug-in PCB Cable Connector


Product description:


Material: Plastic, Metal

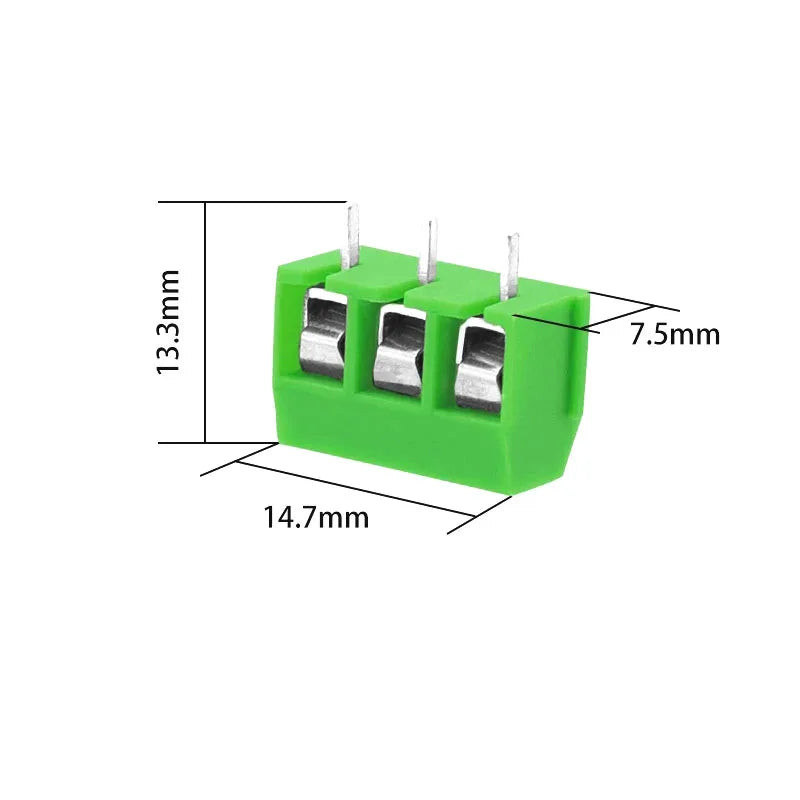

Pitch: 5.0mm
Pin: 2Pin, 3Pin, 4Pin.
Screws: M2.5 steel Zinc plated
Contact: phosphor bronze Ni plated or stainless steel
Pin header: Iron,Tin plated
Housing: PBT,UL94V-0
Rated voltage: 300V
Rated current: 15A
Contact resistance: 20mΩ
Insulation resistance: 5000MΩ/1000V
Withstanding Voltage: AC1500V/1Min
Wire range: 22-14AWG/2.5mm²
Temp.Range: -30°C~+120°C
MAX Soldering: +250°C for 5 Sec.
Torque: 0.5Nm(3.6lb.in)
Strip length: 4.5-5mm
Package: 10Pcs
